The Critical Role of Precision in Injection Mold Fabrication

Defining Precision in Injection Mold Manufacturing

Accuracy in mass production of the injection mold is important to measure and repeat. Such precision is important as it would cause severe defects in mass production if there were a little difference. It is a combination of several factors such as geometry surface finish and dimensional tolerances that are necessary for producing good quality moulds. Many times industry levels of precision are defined and some elements have tolerances as low as ±0.01 mm in line with the specific application, which is also justified by a number of publications issued by a number of industry standards bodies. There are exacting expectations for the injection mold creation to not only meet these high standards, but to insure the reliability and exact design calculations are a steadfast requirement.

How Precision Impacts Final Product Quality

Excellent precision in mold making is a reflection of quality in the final part -from the fit, function and even aesthetics. In automotive and medical applications, where precision in mold-making is critical, reducing material usage is important to improve overall production efficiency. According to statistics, the increase in the accuracy of mold manufacturing can increase the production output by 30% or more, reducing the cost and improving the reliability of product quality. This is further evidence for the economic necessity of precision and its importance in upholding standards in a wide variety of manufacturing sectors.

Advanced CAD/CAM Integration for Accurate Design

CAD/CAM for Mold Design The application of Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) technologies plays a critical role in mold design, in which aforementioned can provide accurate computational analysis and instantaneous error-ranging correction. The rapid prototyping machines feature integrated CAD/CAM systems which results in increased design accuracy that's easy to use and virtually mistake-proof. This entire integration adds to the improvement in precision of the design, and also shortens the time-to-market. There have been studies which show organizations that utilise these solutions typically experience a 20% to 40% decrease in lead times for mold design and production, and this leads to enhanced workflow and faster production times.

Tolerance Standards in Modern Mold Engineering

Most of the modern mold engineering are based on strict tolerances set up by organizations such as ANSI and ISO to ensure the performance and quality of the final product. These specifications establish tolerances for measurements, which is extremely important in industries such as aerospace and medical, where precision is a must. The adoption of such strict tolerance parameters is associated with greater levels of production consistency, which is now supported by recent findings within the industry. Decreasing generation of defects can greatly enhance the reliability of molded articles and also increase mass producibility, and therefore these standards should be followed in the high-stress applications.

Technological Innovations Enhancing Fabrication Accuracy

CNC Machining and High-Speed Milling

CNC machining and high speed milling have fundamentally changed mold making by allowing for the fabrication of intricate, complex shapes with a high degree of accuracy. These technologies use sophisticated algorithms to maximize the tool path, as such cuts down cycle times, and improves the quality of the fabrication. The tilt angle machining center can also streamline these operations as well as hold tolerances as tight as ±0.005 mm to set an industry standard in the precision mold industry. The power to provide such close tolerance ensures that molds are created to the highest levels of accuracy required for high-performance applications prevalent in aerospace and medical fields.

Electrical Discharge Machining (EDM) for Complex Geometries

EDM is one of the key techniques to produce complex shapes in particular for hard-to-cut metals by conventional methods. This contactless process utilises heat to etch away material, and for the fine detailing of complex mould parts this can be completed without compromising the parts integrity. Studies have confirmed that EDM can cut “time-to-market” in making these complex parts by as much as 50 percent, which reinforces it as a key player in the modern moldmaking process. This time savings not only increases productivity, but also saves money, making EDM a necessary solution for organizations looking for accuracy and speed in their mold making.

Material Science and Its Influence on Precision Outcomes

Selecting Tool Steel Grades for Dimensional Stability

Proper selection of the tool steel grades is an essential factor to achieve dimensional stability in an injection molding operation. Tool steel is commonly used in these applications and some popular grades include P20 and H13 due to their durability and retained dimensional stability after exposure to hot temperatures and endless cycles. These are very important properties since slight variations in sizes may give rise to defects in the molded articles. Studies have shown that using the best tool steels in the world can increase mold life by more than 25 percent and help reduce defect rates. This is why steel selection is critical to maintain precision and consistency in the creation of molds.

Thermal Management in Mold Material Selection

Thermal management is always one of the most crucial parameters that are considered when the materials used to fabricate a mold are chosen, because they will affect the performance and the accuracy of the molds. In addition, the molds must be thermally stable in order to balance the benefits (e.g., higher heat capacity) and thermal conductance at a workable level in the light of the material's mechanical properties at the same time. Correct thermal management is essential to control cooling rates, material properties and consequently the dimensional precision of the object. With Process Data, enhanced thermal management can drive a 15% to 20% improvement in the capacity to process, resulting in more consistent quality of molded parts. Such is not only for the quality of production process, but also for the durability and reliability of products.

Metrology Tools for Micron-Level Verification

Throughout the process of making injection molds, metrology positions itself as a key set of tools, including coordinate measuring machines, (CMMs), to verify that the molds meet exacting specifications. These technologies give that kind of micron-based validation that’s been necessary right into the submicron-level. Through the use of calibrated and sophisticated metrology tools, the producer can fine-tune an application to meet the necessary level of accuracy. It has been show by statistical means that companies with rigorous metrology practices tend to suffer from 30% fewer production errors. This dedication to accuracy correlates to overall product quality, and to reliably producing high-quality parts.

Process Validation Through Sample Testing

Testing samples is fundamental to process validation, ensuring the manufacturing process produces products within specified tolerances. This method usually consists in a first sampling inspection, inprocess tests and an overall final inspection of the product. Every tread is built to exacting standards required for the precision fabricated trades. Industry studies have shown that the more a manufacturer tests samples on an ongoing basis, the fewer the percentage of defects. Not only does this provide added robustness to their quality assurance processes, it also demonstrates the dependability of the manufacturing, further building trust in the clients who are accustomed to receiving nothing but the most exacting tolerance from every component that comes out of their doors.

Industry-Specific Demands for High-Precision Molds

Medical Device Manufacturing Requirements

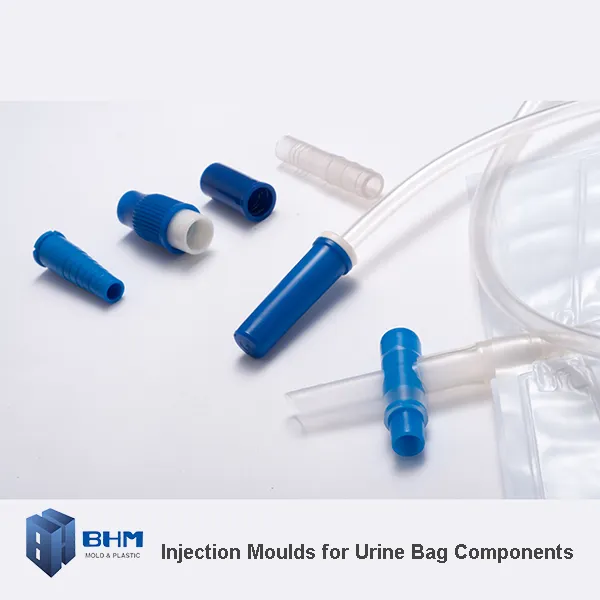

With the high-regulation requirement of a medical device industry, a company can expect nothing less than perfection when it comes to precision. This industry demands extremely accurate molds that uphold patient safety and device performance. While designing and producing the mold, precision tolerances may be required to be as close as ±0.01 mm or less. Little variation and you face the obvious dangers – think of an improperly molded surgical device, that mistake could cost someone his/her life. Manufacturers in this arena must both meet and maintain these exacting precision standards, an important point underscored by industry experts who frequently remind those working with medical-grade materials of the catastrophic costs of mold mistakes in medical markets.

Automotive Components and Tight Tolerance Standards

Stringent tolerance criteria are applied to the automotive sector, for which molds are required to ensure the production of parts within the limits of ± 0.05 mm or less on a consistent basis. This level of accuracy is necessary to guarantee that the parts work and fit exactly the way they should while dealing with the extreme conditions and loads experienced in vehicals. Market research indicates that failing to achieve these very low tolerances can result in significant financial impact; that not tolerating can be expensive. The need for tolerancing such as this within this industry reinforces the importance of quality, precision mold making as seen in the medical device sector.

FAQ Section

Why is precision critical in injection mold manufacturing?

Precision is critical because it ensures the exactness of measurements needed for consistent replication in mass production. Minor deviations can lead to significant defects in products.

How do CAD/CAM technologies enhance precision in mold design?

CAD/CAM technologies enhance precision through accurate computational analysis and feedback loops that minimize human error, reducing design lead times and optimizing workflow.

What role do metrology tools play in ensuring high precision?

Metrology tools ensure high precision by providing micron-level verification of mold specifications, crucial for industries with tight error margins.

Why do medical and automotive industries require high-precision molds?

These industries require high precision to ensure safety, functionality, and reliability of their products, with tight tolerances to meet regulatory and operational standards.
